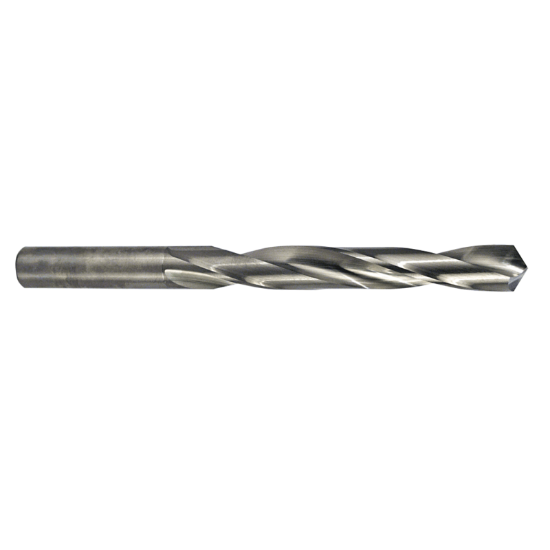

M.A. FORD 22429920 Carbide Drill Solid Carbide 118° 0.299 Dia 0.299 Shank 4.606 OAL 2 Flute 2.953 Flute Length Carbide

ISO: 22429920

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24587
Delivery date: 3-5 days
$50.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Machine Side Connection Size 0.2992 7.60MM
Shank/Pilot Dia 0.2992 7.60MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Flute Length 2.9530 75.01MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.2992 7.60MM
Tool Material Carbide
Included Angle 118°
Cutter Dia 0.2992 7.60MM
Dia Deep 5.0XD
Overall Len 4.6063 117.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
