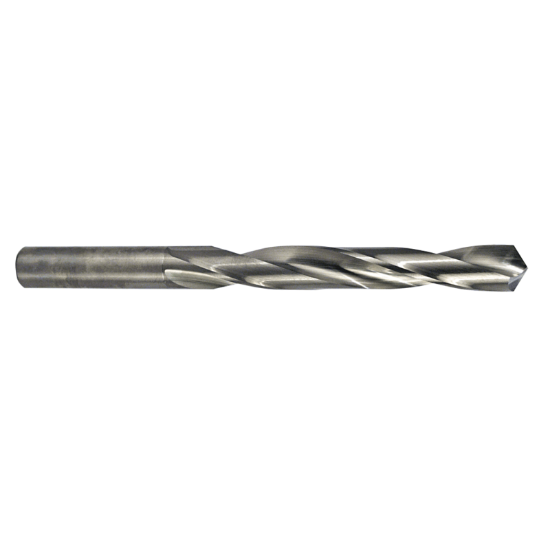

M.A. FORD 22429130 Carbide Drill Solid Carbide 118° 0.291 Dia 0.291 Shank 4.291 OAL 2 Flute 2.717 Flute Length Carbide

ISO: 22429130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24575
Delivery date: 3-5 days
$49.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Dimensional Specifications
Overall Len 4.2913 109.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Included Angle 118°
Cut Dia Min 0.2913 7.40MM
Shank/Pilot Dia 0.2913 7.40MM
Flute Length 2.7170 69.01MM
Dia Deep 5.0XD
Cutter Dia 0.2913 7.40MM
Machine Side Connection Size 0.2913 7.40MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
