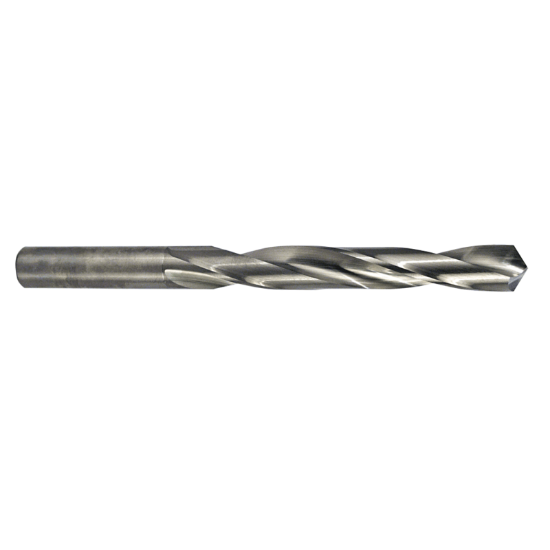

M.A. FORD 22403150 Carbide Drill Solid Carbide 118° 0.031 Dia 0.031 Shank 1.181 OAL 2 Flute 0.394 Flute Length Carbide

ISO: 22403150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24077
Delivery date: 3-5 days
$8.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0315 0.80MM
Cutter Dia 0.0315 0.80MM
Overall Len 1.1811 30.00MM
Dia Deep 5.0XD
Flutes/Inserts 2
Shank/Pilot Dia 0.0315 0.80MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.0315 0.80MM
Flute Length 0.3940 10.01MM
Included Angle 118°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
