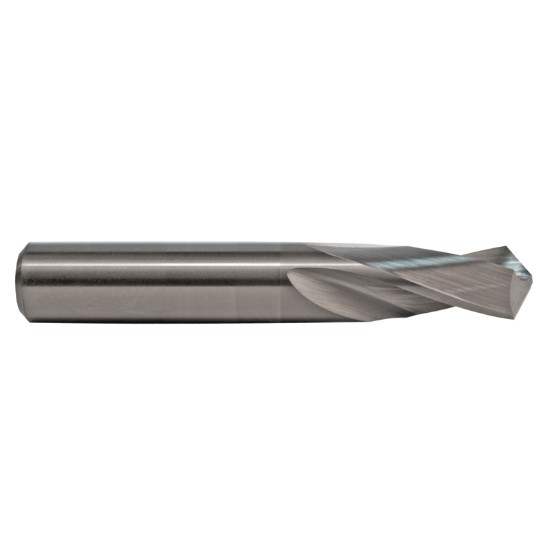

M.A. FORD 20678120 Carbide Drill Solid Carbide 118° 0.781 Dia 0.781 Shank 4.000 OAL 2 Flute 2.250 Flute Length Carbide

ISO: 20678120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26784
Delivery date: 3-5 days
$154.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.7813 19.85MM - 25/32
Machine Side Connection Size 0.7813 19.85MM
Shank/Pilot Dia 0.7813 19.85MM - 25/32
Drill Length Type Stub
Cut Dia Min 0.7810 19.84MM - 25/32
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Overall Len 4.0000 101.60MM
Flute Length 2.2500 57.15MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
