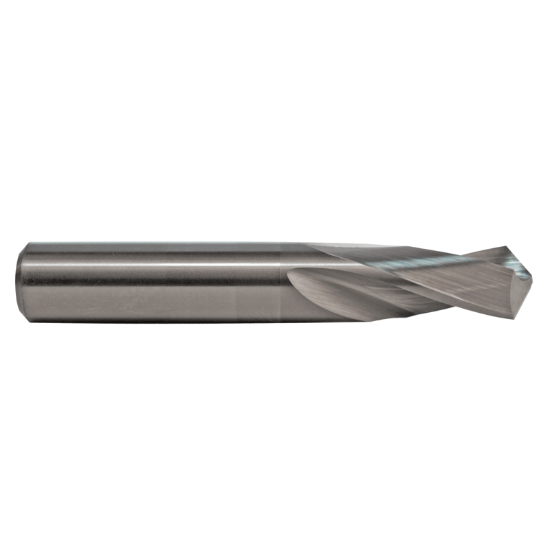

M.A. FORD 20676560 Carbide Drill Solid Carbide 118° 0.765 Dia 0.765 Shank 4.000 OAL 2 Flute 2.250 Flute Length Carbide

ISO: 20676560

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26781
Delivery date: 3-5 days
$150.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7656 19.45MM - 49/64
Shank/Pilot Dia 0.7656 19.45MM - 49/64
Included Angle 118°
Overall Len 4.0000 101.60MM
Flutes/Inserts 2
Drill Length Type Stub
Cutter Dia 0.7656 19.45MM - 49/64
Machine Side Connection Size 0.7656 19.45MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 2.2500 57.15MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
