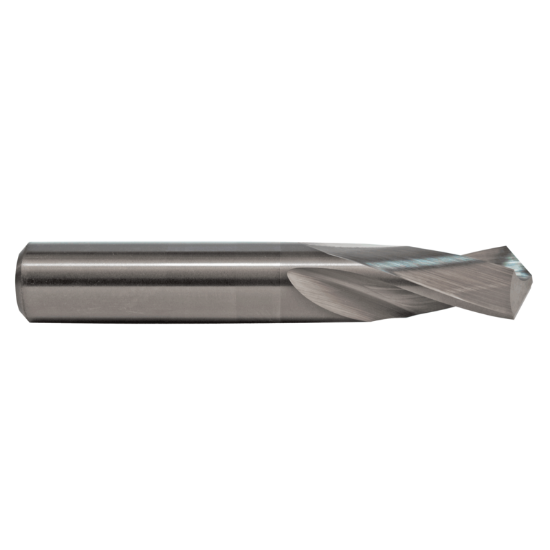

M.A. FORD 20670310 Carbide Drill Solid Carbide 118° 0.703 Dia 0.703 Shank 4.000 OAL 2 Flute 2.000 Flute Length Carbide

ISO: 20670310

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26760
Delivery date: 3-5 days
$132.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.7031 17.86MM - 45/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.7031 17.86MM - 45/64
Drill Length Type Stub
Machine Side Connection Size 0.7031 17.86MM
Cutter Dia 0.7031 17.86MM - 45/64
Flutes/Inserts 2
Overall Len 4.0000 101.60MM
Flute Length 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
