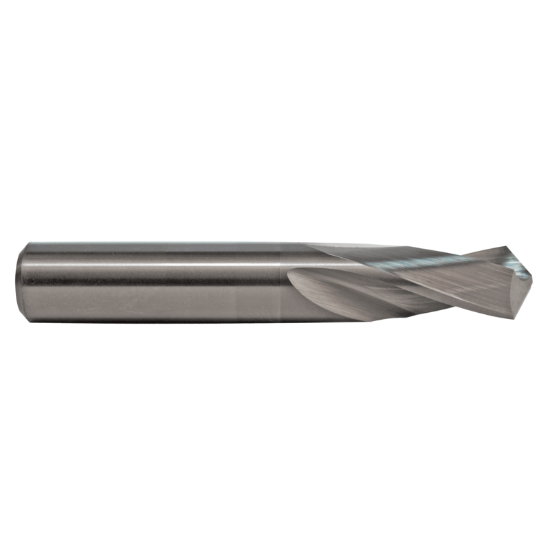

M.A. FORD 20667190 Carbide Drill Solid Carbide 118° 0.671 Dia 0.671 Shank 4.000 OAL 2 Flute 1.875 Flute Length Carbide

ISO: 20667190

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26751
Delivery date: 3-5 days
$122.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Shank/Pilot Dia 0.6719 17.07MM - 43/64
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.6719 17.07MM - 43/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Flute Length 1.8750 47.63MM
Machine Side Connection Size 0.6719 17.07MM
Drill Length Type Stub
Flutes/Inserts 2
Cutter Dia 0.6719 17.06MM - 43/64
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
