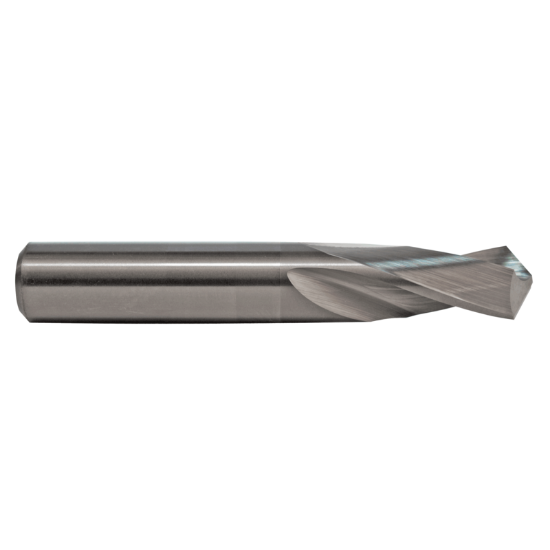

M.A. FORD 20665620 Carbide Drill Solid Carbide 118° 0.656 Dia 0.656 Shank 4.000 OAL 2 Flute 1.875 Flute Length Carbide

ISO: 20665620

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26745
Delivery date: 3-5 days
$116.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Dimensional Specifications
Flute Length 1.8750 47.63MM
Cut Dia Min 0.6562 16.67MM - 21/32
Overall Len 4.0000 101.60MM
Machine Side Connection Size 0.6563 16.67MM
Flutes/Inserts 2
Drill Length Type Stub
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.6563 16.67MM - 21/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.6562 16.67MM - 21/32
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
