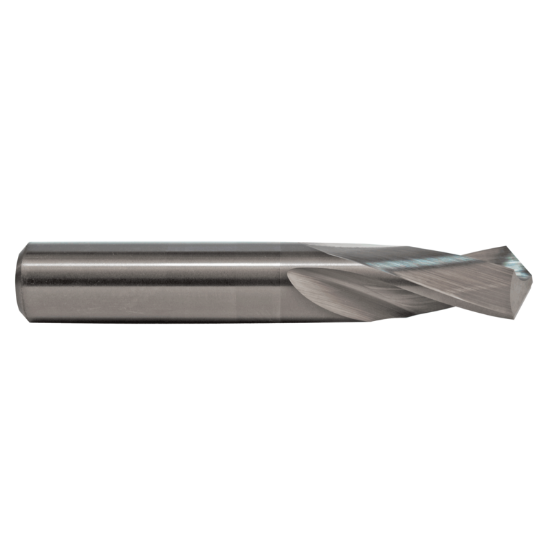

M.A. FORD 20660940 Carbide Drill Solid Carbide 118° 0.609 Dia 0.609 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide

ISO: 20660940

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26727
Delivery date: 3-5 days
$101.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.6094 15.48MM - 39/64
Flutes/Inserts 2
Cut Dia Min 0.6094 15.48MM - 39/64
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Size 0.6094 15.48MM
Included Angle 118°
Shank/Pilot Dia 0.6094 15.48MM - 39/64
Flute Length 1.7500 44.45MM
Drill Length Type Stub
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
