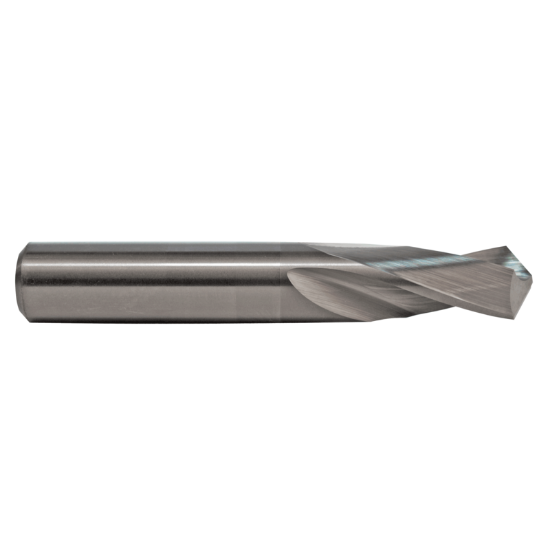

M.A. FORD 20659380 Carbide Drill Solid Carbide 118° 0.593 Dia 0.593 Shank 3.500 OAL 2 Flute 1.625 Flute Length Carbide

ISO: 20659380

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26724
Delivery date: 3-5 days
$94.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.6250 41.28MM
Included Angle 118°
Shank/Pilot Dia 0.5938 15.08MM - 19/32
Drill Length Type Stub
Machine Side Connection Size 0.5938 15.08MM
Cutter Dia 0.5938 15.08MM - 19/32
Flutes/Inserts 2
Cut Dia Min 0.5938 15.08MM - 19/32
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
