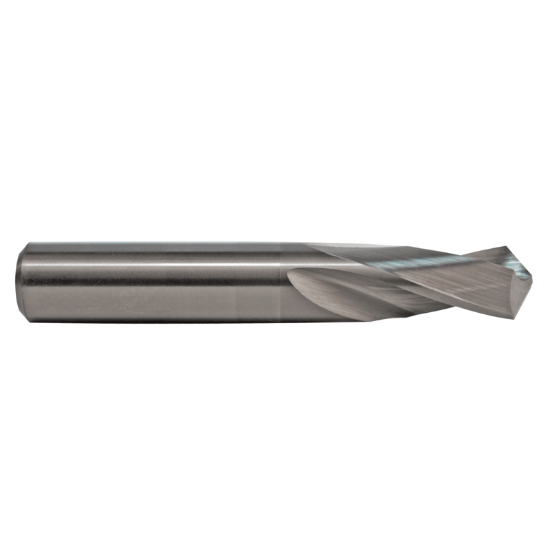

M.A. FORD 20651560 Carbide Drill Solid Carbide 118° 0.515 Dia 0.515 Shank 3.500 OAL 2 Flute 1.375 Flute Length Carbide

ISO: 20651560

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26697
Delivery date: 3-5 days
$66.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Size 0.5156 13.10MM
Overall Len 3.5000 88.90MM
Included Angle 118°
Cutter Dia 0.5156 13.10MM - 33/64
Cut Dia Min 0.5156 13.10MM - 33/64
Flute Length 1.3750 34.93MM
Drill Length Type Stub
Shank/Pilot Dia 0.5156 13.10MM - 33/64
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
