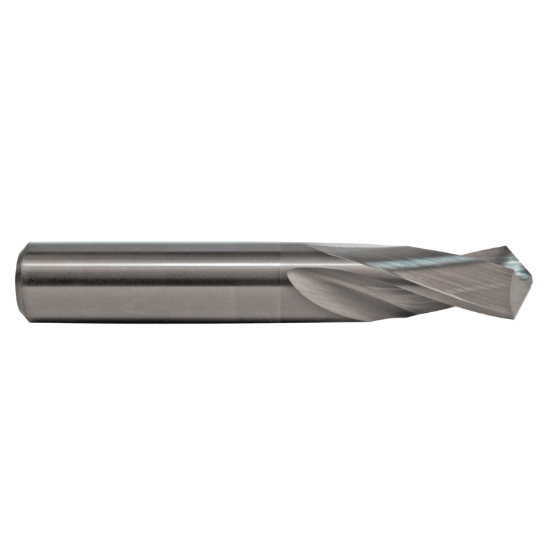

M.A. FORD 20646880 Carbide Drill Solid Carbide 118° 0.468 Dia 0.468 Shank 3.000 OAL 2 Flute 1.250 Flute Length Carbide

ISO: 20646880

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26679
Delivery date: 3-5 days
$58.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Flute Length 1.2500 31.75MM
Cutter Dia 0.4688 11.91MM - 15/32
Shank/Pilot Dia 0.4688 11.91MM - 15/32
Flutes/Inserts 2
Drill Length Type Stub
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Machine Side Connection Size 0.4688 11.91MM
Overall Len 3.0000 76.20MM
Cut Dia Min 0.4688 11.91MM - 15/32
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
