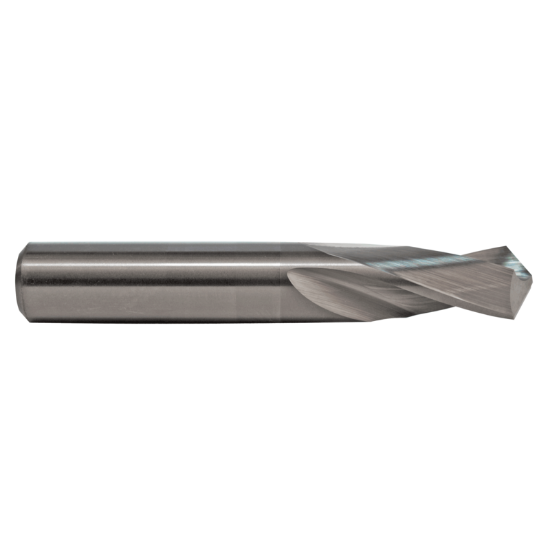

M.A. FORD 20632810 Carbide Drill Solid Carbide 118° 0.328 Dia 0.328 Shank 2.500 OAL 2 Flute 1.250 Flute Length Carbide

ISO: 20632810

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26514
Delivery date: 3-5 days
$37.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Drill Length Type Stub
Cut Dia Min 0.3281 8.33MM - 21/64
Shank/Pilot Dia 0.3281 8.33MM - 21/64
Machine Side Connection Size 0.3281 8.33MM
Overall Len 2.5000 63.50MM
Cutter Dia 0.3281 8.33MM - 21/64
Flutes/Inserts 2
Flute Length 1.2500 31.75MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
