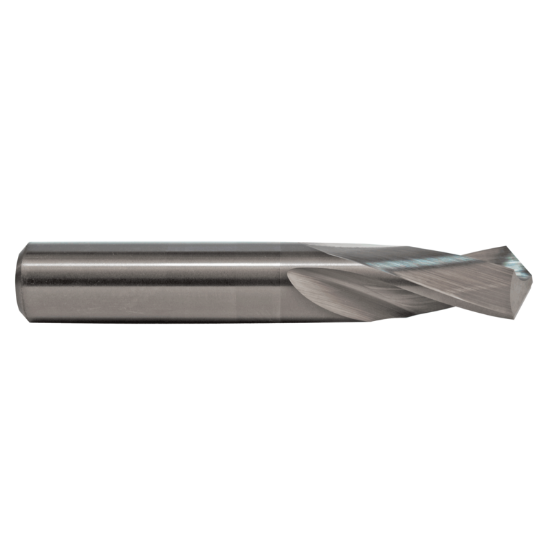

M.A. FORD 20625700F Carbide Drill Solid Carbide 118° 0.257 Dia 0.257 Shank 2.500 OAL 2 Flute 1.000 Flute Length Carbide Fordlube

ISO: 20625700F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF15950
Delivery date: 3-5 days
$46.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Package Size 1
Coating Fordlube
Dimensional Specifications
Shank/Pilot Dia 0.2570 6.53MM - F
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2570 6.53MM
Included Angle 118°
Overall Len 2.5000 63.50MM
Cutter Dia 0.2570 6.53MM - F
Cut Dia Min 0.2570 6.53MM - F
Flute Length 1.0000 25.40MM
Drill Length Type Stub
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
