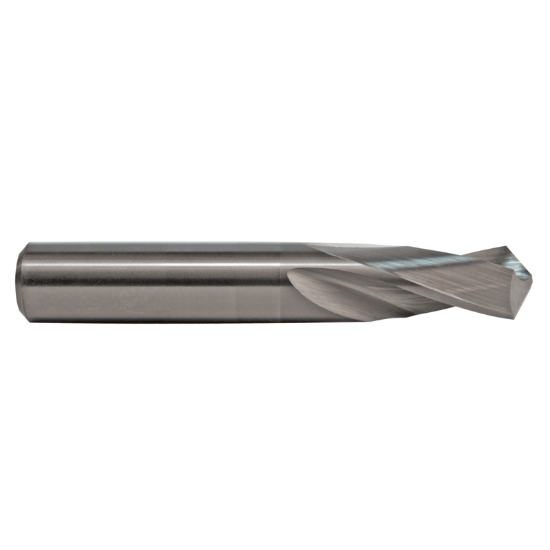

M.A. FORD 20618900 Carbide Drill Solid Carbide 118° 0.189 Dia 0.189 Shank 2.187 OAL 2 Flute 0.750 Flute Length Carbide

ISO: 20618900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26304
Delivery date: 3-5 days
$17.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Dia Min 0.1890 4.80MM - #12
Flute Length 0.7500 19.05MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.1890 4.80MM - #12
Drill Length Type Stub
Cutter Dia 0.1890 4.80MM - #12
Machine Side Connection Size 0.1890 4.80MM
Overall Len 2.1875 55.56MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
