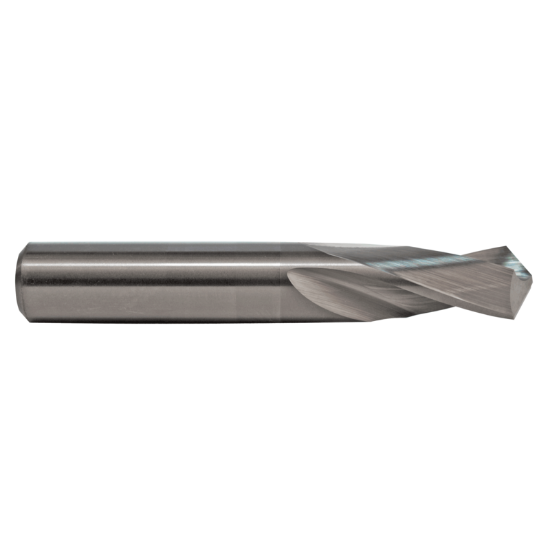

M.A. FORD 20612500 Carbide Drill Solid Carbide 118° 0.125 Dia 0.125 Shank 2.000 OAL 2 Flute 0.625 Flute Length Carbide

ISO: 20612500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26187
Delivery date: 3-5 days
$10.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Overall Len 2.0000 50.80MM
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Included Angle 118°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.6250 15.88MM
Cutter Dia 0.1250 3.18MM - 1/8
Drill Length Type Stub
Cut Dia Min 0.1250 3.18MM - 1/8
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
