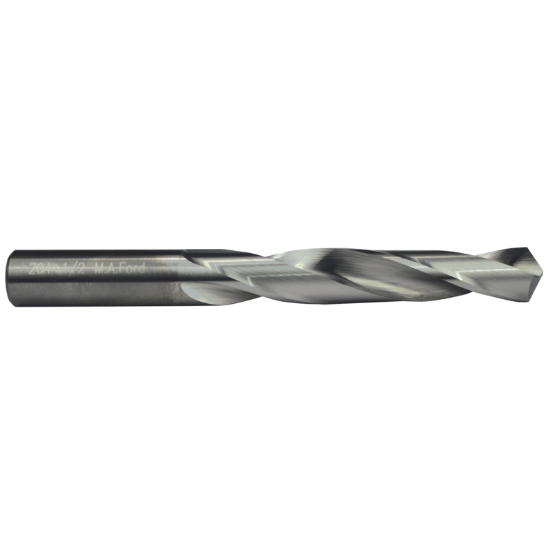

M.A. FORD 20471880 Carbide Drill Solid Carbide 118° 0.718 Dia 0.718 Shank 5.750 OAL 2 Flute 3.875 Flute Length Carbide

ISO: 20471880

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24874
Delivery date: 3-5 days
$237.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Cut Dia Min 0.7188 18.26MM - 23/32
Flute Length 3.8750 98.43MM
Machine Side Connection Size 0.7188 18.26MM
Flutes/Inserts 2
Drill Length Type Jobber
Shank/Pilot Dia 0.7188 18.26MM - 23/32
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 5.7500 146.05MM
Included Angle 118°
Cutter Dia 0.7188 18.26MM - 23/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
