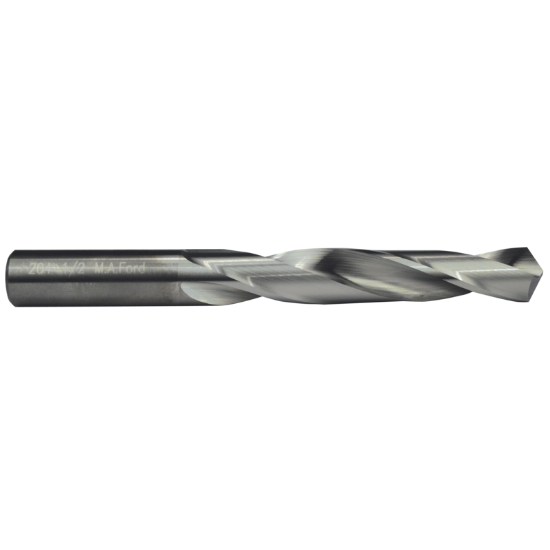

M.A. FORD 20464060 Carbide Drill Solid Carbide 118° 0.640 Dia 0.640 Shank 5.500 OAL 2 Flute 3.625 Flute Length Carbide

ISO: 20464060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24847
Delivery date: 3-5 days
$194.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Cut Dia Min 0.6406 16.27MM - 41/64
Shank/Pilot Dia 0.6406 16.27MM - 41/64
Flute Length 3.6250 92.08MM
Drill Length Type Jobber
Cutter Dia 0.6406 16.27MM - 41/64
Flutes/Inserts 2
Machine Side Connection Size 0.6406 16.27MM
Overall Len 5.5000 139.70MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
