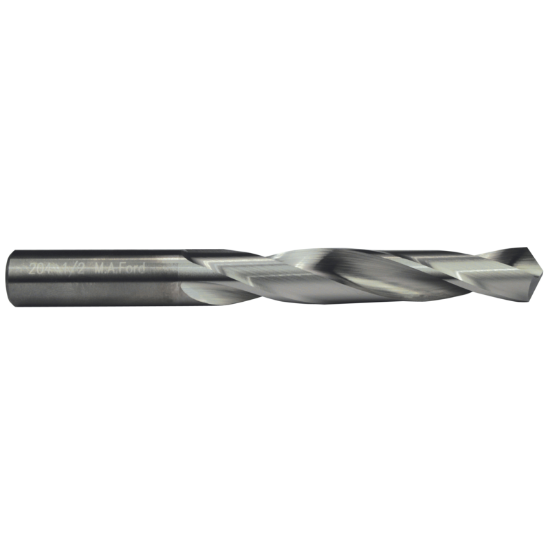

M.A. FORD 20457810 Carbide Drill Solid Carbide 118° 0.578 Dia 0.578 Shank 5.250 OAL 2 Flute 3.500 Flute Length Carbide

ISO: 20457810

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24826
Delivery date: 3-5 days
$154.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Cutter Dia 0.5781 14.68MM - 37/64
Flute Length 3.5000 88.90MM
Machine Side Connection Size 0.5781 14.68MM
Overall Len 5.2500 133.35MM
Drill Length Type Jobber
Cut Dia Min 0.5781 14.68MM - 37/64
Flutes/Inserts 2
Shank/Pilot Dia 0.5781 14.68MM - 37/64
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
