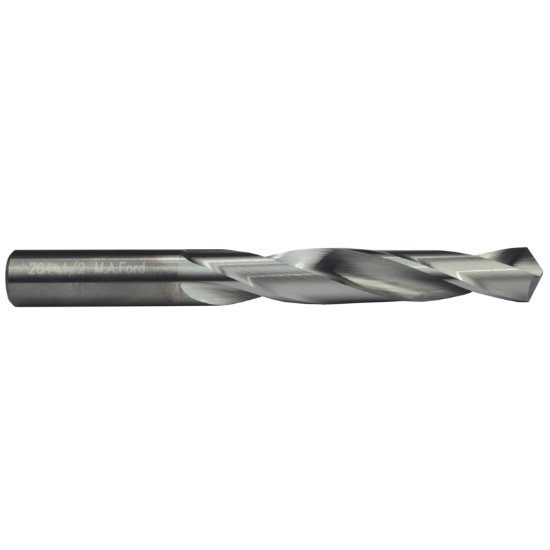

M.A. FORD 20443750 Carbide Drill Solid Carbide 118° 0.437 Dia 0.437 Shank 4.500 OAL 2 Flute 2.875 Flute Length Carbide

ISO: 20443750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24757
Delivery date: 3-5 days
$92.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.4375 11.11MM - 7/16
Drill Length Type Jobber
Flutes/Inserts 2
Overall Len 4.5000 114.30MM
Flute Length 2.8750 73.03MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Included Angle 118°
Cut Dia Min 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
