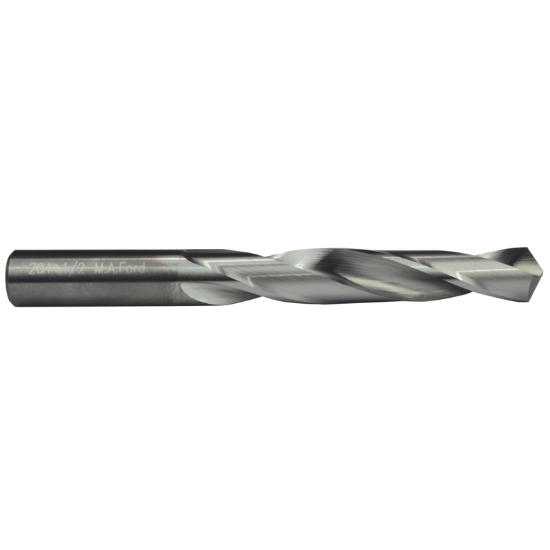

M.A. FORD 20440400 Carbide Drill Solid Carbide 118° 0.404 Dia 0.404 Shank 4.500 OAL 2 Flute 2.875 Flute Length Carbide

ISO: 20440400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24718
Delivery date: 3-5 days
$90.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Dimensional Specifications
Overall Len 4.5000 114.30MM
Flute Length 2.8750 73.03MM
Cutter Dia 0.4040 10.26MM - Y
Shank/Pilot Dia 0.4040 10.26MM - Y
Flutes/Inserts 2
Drill Length Type Jobber
Machine Side Connection Size 0.4040 10.26MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.4040 10.26MM - Y
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
