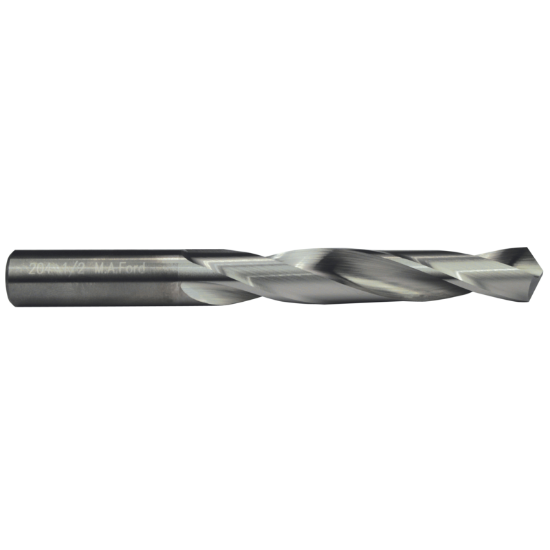

M.A. FORD 20435800 Carbide Drill Solid Carbide 118° 0.358 Dia 0.358 Shank 4.250 OAL 2 Flute 2.750 Flute Length Carbide

ISO: 20435800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24658
Delivery date: 3-5 days
$64.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.3580 9.09MM - T
Cut Dia Min 0.3580 9.09MM - T
Overall Len 4.2500 107.95MM
Flutes/Inserts 2
Shank/Pilot Dia 0.3580 9.09MM - T
Machine Side Connection Size 0.3580 9.09MM
Drill Length Type Jobber
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Flute Length 2.7500 69.85MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
