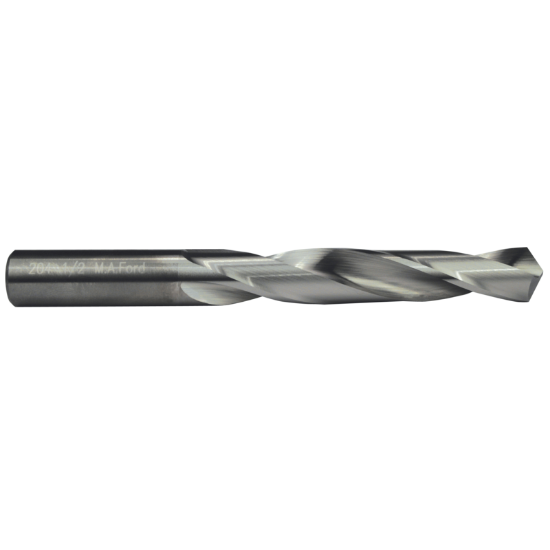

M.A. FORD 20433900 Carbide Drill Solid Carbide 118° 0.339 Dia 0.339 Shank 4.000 OAL 2 Flute 2.500 Flute Length Carbide

ISO: 20433900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24637
Delivery date: 3-5 days
$58.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3390 8.61MM
Flute Length 2.5000 63.50MM
Cut Dia Min 0.3390 8.61MM - R
Shank/Pilot Dia 0.3390 8.61MM - R
Overall Len 4.0000 101.60MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.3390 8.61MM - R
Included Angle 118°
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
