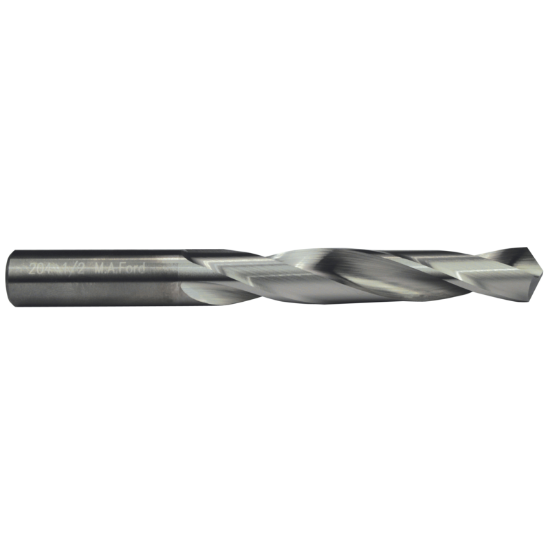

M.A. FORD 20428120 Carbide Drill Solid Carbide 118° 0.281 Dia 0.281 Shank 3.500 OAL 2 Flute 2.125 Flute Length Carbide

ISO: 20428120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24562
Delivery date: 3-5 days
$38.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Flute Length 2.1250 53.98MM
Drill Length Type Jobber
Cutter Dia 0.2812 7.14MM - 9/32
Cut Dia Min 0.2810 7.14MM - 9/32 - K
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2813 7.15MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.5000 88.90MM
Included Angle 118°
Shank/Pilot Dia 0.2810 7.14MM - 9/32 - K
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
