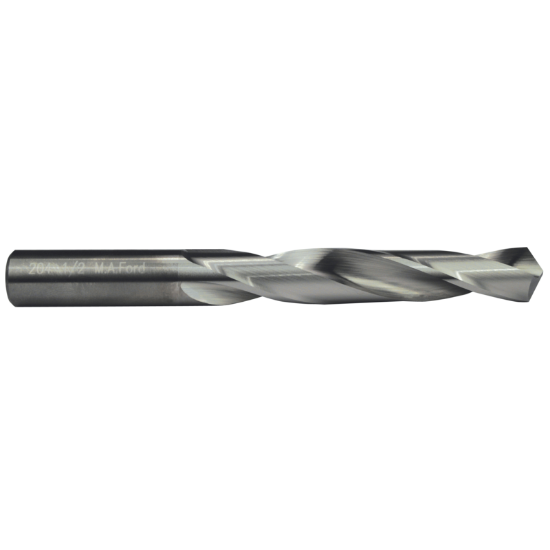

M.A. FORD 20427700 Carbide Drill Solid Carbide 118° 0.277 Dia 0.277 Shank 3.500 OAL 2 Flute 2.125 Flute Length Carbide

ISO: 20427700

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24553
Delivery date: 3-5 days
$42.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Drill Length Type Jobber
Cutter Dia 0.2770 7.04MM - J
Flutes/Inserts 2
Overall Len 3.5000 88.90MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Flute Length 2.1250 53.98MM
Shank/Pilot Dia 0.2770 7.04MM - J
Cut Dia Min 0.2770 7.04MM - J
Machine Side Connection Size 0.2770 7.04MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
