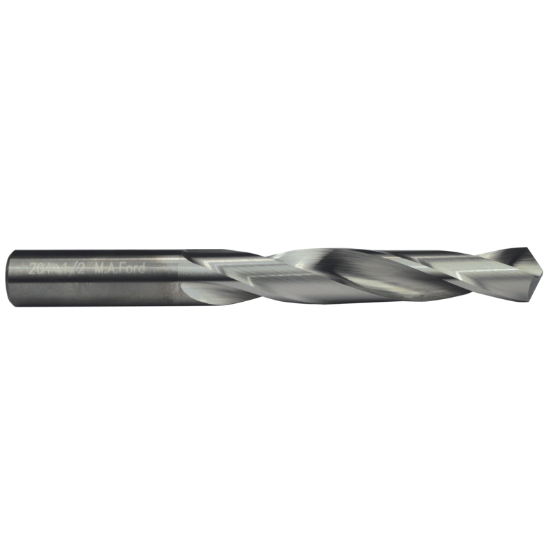

M.A. FORD 20406250 Carbide Drill Solid Carbide 118° 0.062 Dia 0.062 Shank 1.500 OAL 2 Flute 0.750 Flute Length Carbide

ISO: 20406250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24169
Delivery date: 3-5 days
$10.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Flute Length 0.7500 19.05MM
Shank/Pilot Dia 0.0625 1.59MM - 1/16
Drill Length Type Jobber
Cut Dia Min 0.0625 1.59MM - 1/16
Machine Side Connection Size 0.0625 1.59MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Overall Len 1.5000 38.10MM
Cutter Dia 0.0625 1.59MM - 1/16
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
