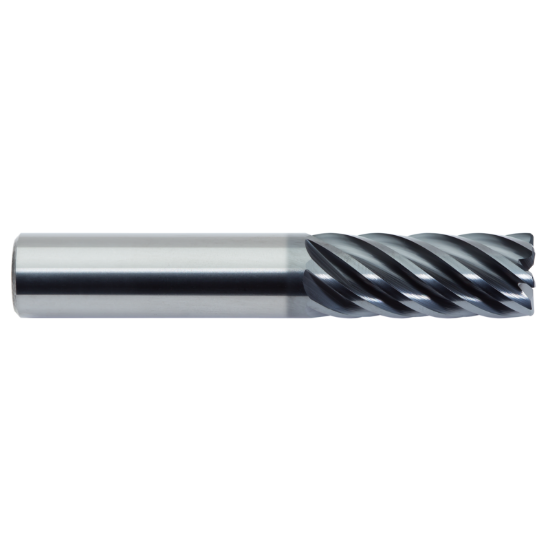

M.A. FORD 18050007B DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0900 2.29MM TuffCut® XR7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF18521
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Coating AlTiN
Performance Rating High Performance
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Carbide
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Cylindrical
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Helix Angle 38°
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Flutes/Inserts 7
Length Of Cut 0.6250 15.88MM
Dimension Description 0.500 x 0.500 x 0.625 x 3.000
Corner Radius 0.0900 2.29MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
