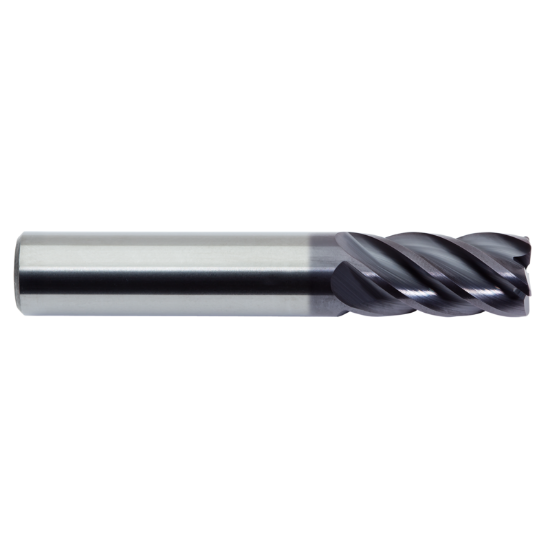

M.A. FORD 17831204AW DIA 5/16 SH 0.3125 LOC 0.4375 OAL 2.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0300 0.76MM TuffCut® XR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13253
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Coating AlTiN
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Length Of Cut 0.4375 11.11MM
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Helix Angle 38°
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 2.0000 50.80MM
Flutes/Inserts 5
Dimension Description 0.313 x 0.313 x 0.438 x 2.000
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Cutter Dia 0.3125 7.94MM - 5/16
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
