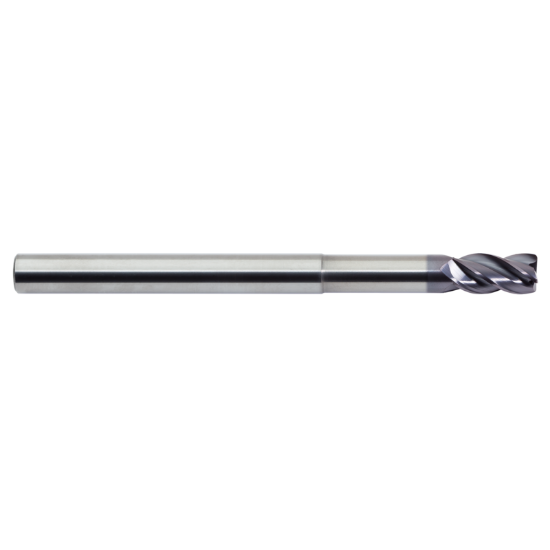

M.A. FORD 177L2360R010N5A DIA 6MM SH 0.2362 LOC 0.4724 OAL 3.9764 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius 0.0098 0.25MM TuffCut® XR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF18186
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Iowa
Package Size 1
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Coating AlTiN
Performance Rating High Performance
Dimensional Specifications
Neck Length 1.2205 31.00MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Dimension Description 0.236 x 0.236 x 0.472 x 3.976
Overall Len 3.9764 101.00MM
Flutes/Inserts 4
Length Of Cut 0.4724 12.00MM
Length Type Standard / With Neck
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Inch/Metric Metric
Corner Radius 0.0098 0.25MM
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
