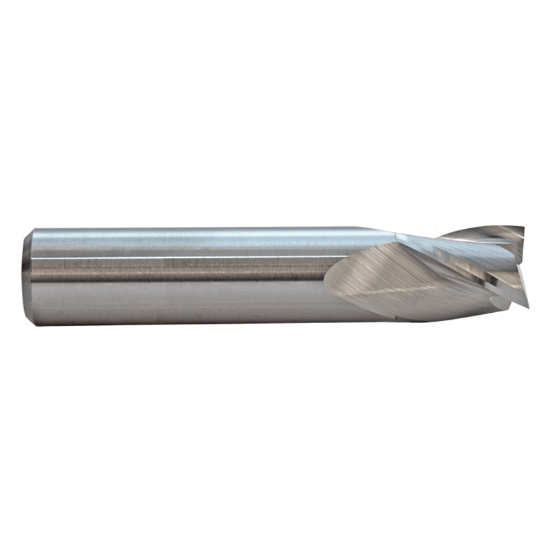

M.A. FORD 16912500R.005F DIA 1/8 SH 0.1250 LOC 0.2500 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF17009
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling, Profile Milling, Copy Milling
Coating Fordlube
Performance Rating General Performance
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Corner Radius 0.0050 0.13MM
Length Type Standard
End Of Tool Shape Corner Radius
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.125 x 0.125 x 0.250 x 1.500
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
