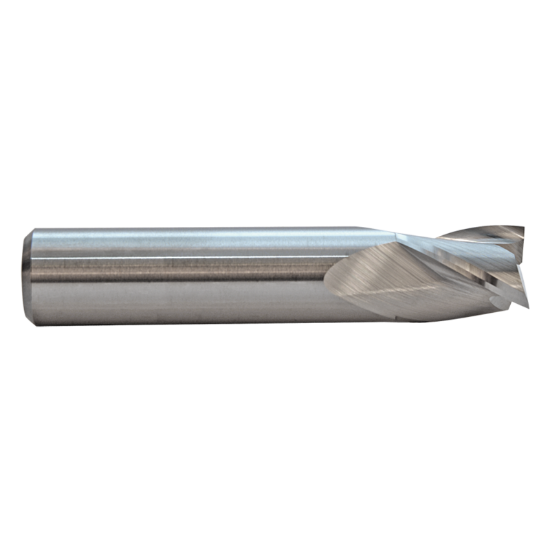

M.A. FORD 16911810R.018 DIA 3MM SH 0.1181 LOC 0.2362 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0181 0.46MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF12027
Delivery date: 3-5 days
$18.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Iowa
Dimensional Specifications
Dimension Description 0.118 x 0.118 x 0.236 x 1.496
Cutter Dia 0.1181 3.00MM
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Overall Len 1.4961 38.00MM
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Length Of Cut 0.2362 6.00MM
Corner Radius 0.0181 0.46MM
Machine Side Connection Size 0.1181 3.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
