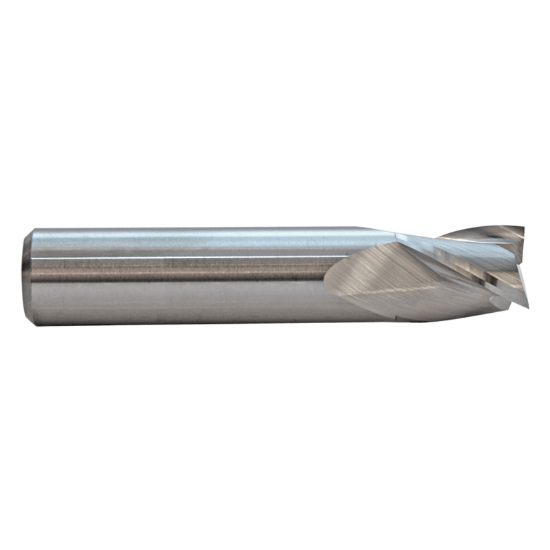

M.A. FORD 16909370R.015F DIA 3/32 SH 0.1250 LOC 0.1875 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius 0.0150 0.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF17007
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Performance Rating General Performance
Coating Fordlube
Shipping State Iowa
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Tool Material Carbide
Inch/Metric Inch
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.094 x 0.125 x 0.188 x 1.500
Cutter Dia 0.0938 2.38MM - 3/32
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.1875 4.76MM
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
