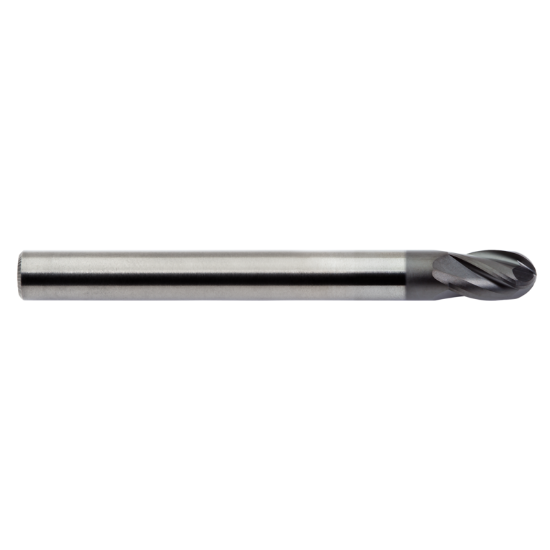

M.A. FORD 16518750GX DIA 3/16 SH 0.1875 LOC 0.3750 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Gemx Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF03653
Delivery date: 3-5 days
$98.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Coating Gemx
Package Size 1
Performance Rating General Performance
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Dimension Description 0.188 x 0.188 x 0.375 x 2.000
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Length Type Standard
Flutes/Inserts 4
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
End Of Tool Shape Ball Nose
Length Of Cut 0.3750 9.53MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
