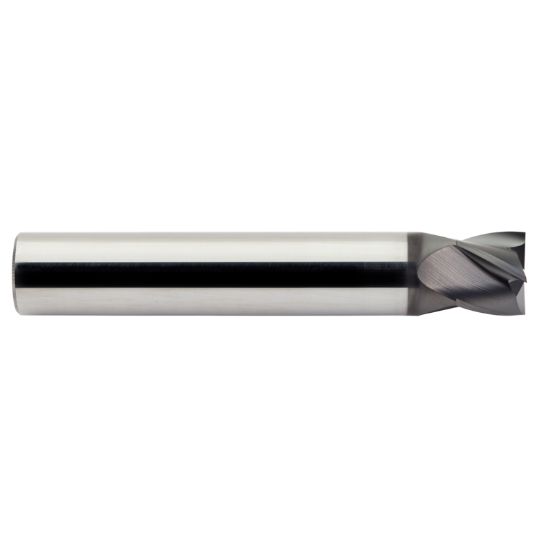

M.A. FORD 163S187R.030N8GX DIA 3/16 SH 0.1875 LOC 0.2187 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Gemx Single End Corner Radius 0.0300 0.76MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF03661
Delivery date: 3-5 days
$128.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Face Milling, Profile Milling, Side Milling
Performance Rating General Performance
Coating Gemx
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 1.5000 38.10MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Type Standard / With Neck
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Machine Side Connection Size 0.1875 4.76MM
Dimension Description 0.188 x 0.188 x 0.219 x 3.000
Overall Len 3.0000 76.20MM
Length Of Cut 0.2188 5.56MM
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
