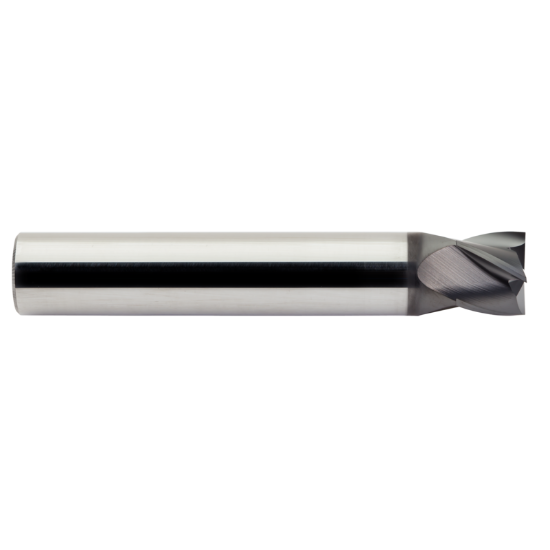

M.A. FORD 163S125R.015N12GX DIA 1/8 SH 0.1250 LOC 0.1875 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Gemx Single End Corner Radius 0.0150 0.38MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF03660
Delivery date: 3-5 days
$109.45

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Package Size 1
Shipping State Iowa
Made In USA Yes
Performance Rating General Performance
Coating Gemx
Dimensional Specifications
Flutes/Inserts 4
Dimension Description 0.125 x 0.125 x 0.188 x 3.000
Neck Length 1.5000 38.10MM
Length Of Cut 0.1875 4.76MM
Single/Double End Single End
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0150 0.38MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
