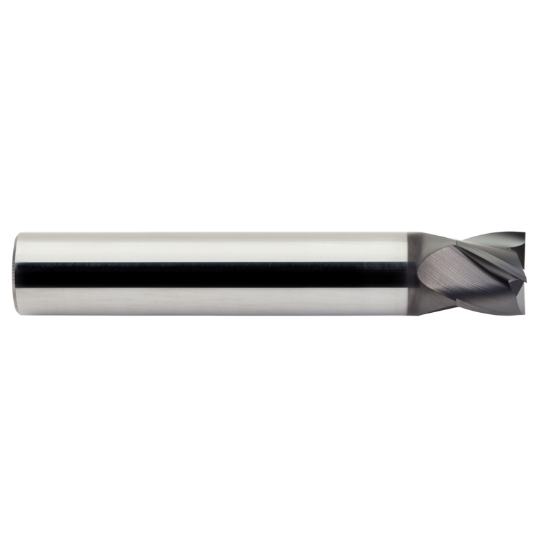

M.A. FORD 163S078R.010N5GX DIA 5/64 SH 0.1250 LOC 0.1250 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Gemx Single End Corner Radius 0.0100 0.25MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF03659
Delivery date: 3-5 days
$105.73

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Package Size 1
Coating Gemx
Shipping State Iowa
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 0.1250 3.18MM
Cutter Dia 0.0781 1.98MM - 5/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Flutes/Inserts 4
Length Type Standard / With Neck
Corner Radius 0.0100 0.25MM
Helix Angle 30°
Single/Double End Single End
Dimension Description 0.078 x 0.125 x 0.125 x 2.500
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Neck Length 0.4062 10.32MM
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
