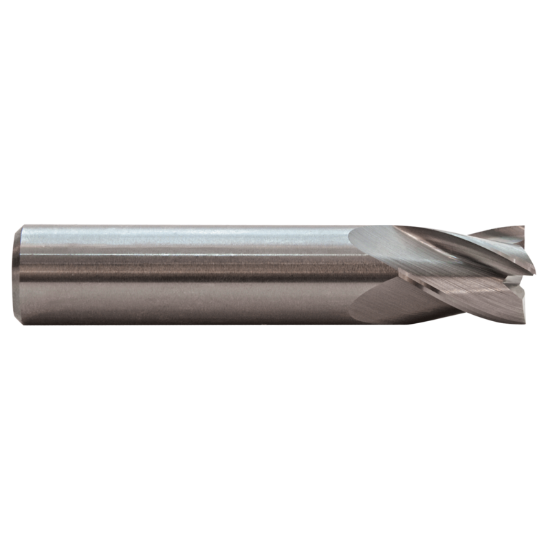

M.A. FORD 16314060R.010 DIA 9/64 SH 0.1875 LOC 0.3125 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF77202
Delivery date: 3-5 days
$18.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0100 0.25MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.1406 3.57MM - 9/64 - #28
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.141 x 0.188 x 0.313 x 2.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3125 7.94MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
