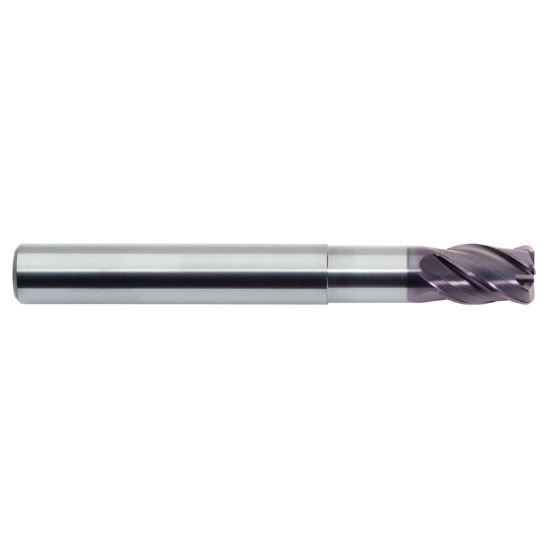

M.A. FORD 158M06N20-0.3RA DIA 6MM SH 0.2362 LOC 0.3543 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0118 0.30MM TuffCut® DM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF99187
Delivery date: 3-5 days
$40.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Shipping State Iowa
Performance Rating High Performance
Coating AlTiN
Dimensional Specifications
Corner Radius 0.0118 0.30MM
Overall Len 2.9528 75.00MM
Inch/Metric Metric
Single/Double End Single End
Cutter Style Carbide Bull Nose Finisher
Helix Angle 20°
Dimension Description 0.236 x 0.236 x 0.354 x 2.953
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Flutes/Inserts 4
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.3543 9.00MM
Length Type Standard / With Neck
Neck Length 0.7874 20.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
