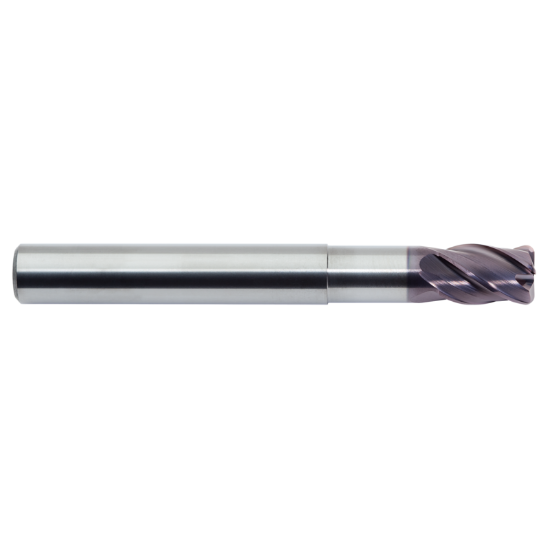

M.A. FORD 158M04N30-0.5RA DIA 4MM SH 0.2362 LOC 0.2362 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0197 0.50MM TuffCut® DM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF99185
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Package Size 1
Application Copy Milling, Side Milling, Face Milling, Profile Milling
Coating AlTiN
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0197 0.50MM
Dimension Description 0.157 x 0.236 x 0.236 x 2.953
Flutes/Inserts 4
Inch/Metric Metric
Cutter Dia 0.1574 4.00MM
Cutter Style Carbide Bull Nose Finisher
Helix Angle 20°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.2362 6.00MM
Neck Length 1.1811 30.00MM
Overall Len 2.9528 75.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
