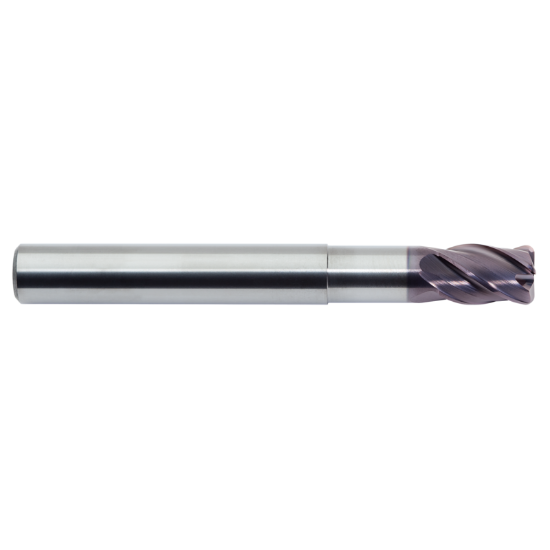

M.A. FORD 158M04N12-0.2RA DIA 4MM SH 0.2362 LOC 0.2362 OAL 2.4803 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0079 0.20MM TuffCut® DM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF99175
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Application Side Milling, Profile Milling, Copy Milling, Face Milling
Made In USA Yes
Performance Rating High Performance
Coating AlTiN
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Neck Length 0.4724 12.00MM
Flutes/Inserts 4
Dimension Description 0.157 x 0.236 x 0.236 x 2.480
Helix Angle 20°
End Of Tool Shape Corner Radius
Cutter Dia 0.1574 4.00MM
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard / With Neck
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Length Of Cut 0.2362 6.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Medical Yes
Job Shop Yes
