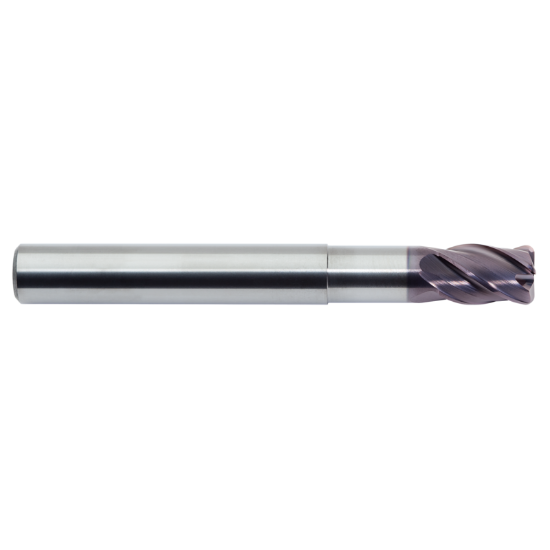

M.A. FORD 158M04N10-0.5RA DIA 4MM SH 0.2362 LOC 0.2362 OAL 2.4803 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0197 0.50MM TuffCut® DM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF99180
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State Iowa
Coating AlTiN
Dimensional Specifications
Cutter Dia 0.1574 4.00MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Flutes/Inserts 4
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.157 x 0.236 x 0.236 x 2.480
Corner Radius 0.0197 0.50MM
Helix Angle 20°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Length Of Cut 0.2362 6.00MM
Neck Length 0.3937 10.00MM
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard / With Neck
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
