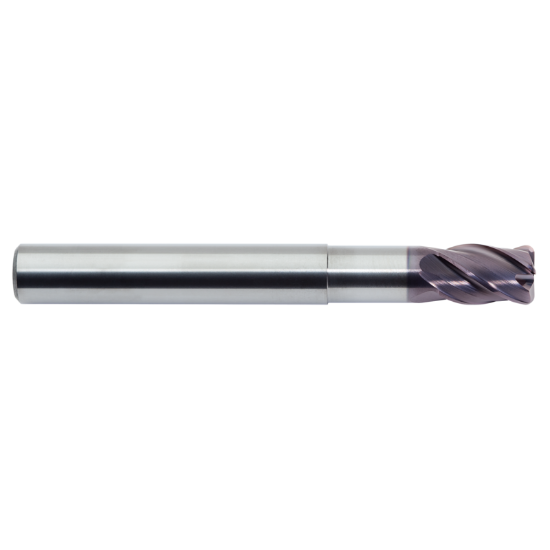

M.A. FORD 158M03N25-0.5RA DIA 3MM SH 0.2362 LOC 0.1969 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.0197 0.50MM TuffCut® DM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF99171
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Profile Milling, Face Milling, Copy Milling, Side Milling
Package Size 1
Coating AlTiN
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard / With Neck
Cutter Dia 0.1181 3.00MM
Cutter Style Carbide Bull Nose Finisher
Neck Length 0.9843 25.00MM
End Of Tool Shape Corner Radius
Dimension Description 0.118 x 0.236 x 0.197 x 2.953
Overall Len 2.9528 75.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.1969 5.00MM
Corner Radius 0.0197 0.50MM
Helix Angle 20°
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Medical Yes
Aerospace Yes
