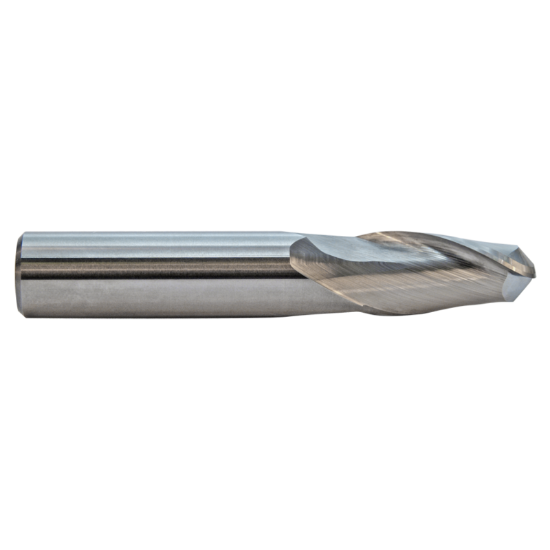

M.A. FORD 15031500 DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.5197 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF15053
Delivery date: 3-5 days
$28.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Side Milling, Ball Slot Milling
Shipping State Iowa
Performance Rating General Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Dimension Description 0.315 x 0.315 x 0.787 x 2.520
Overall Len 2.5197 64.00MM
Length Type Standard
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.3150 8.00MM
Helix Angle 30°
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.7874 20.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
