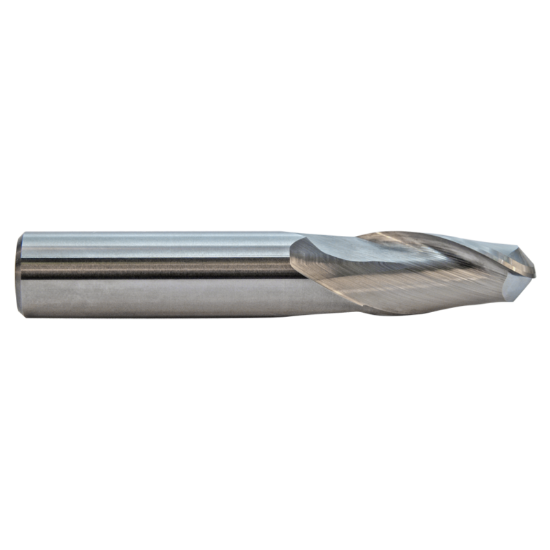

M.A. FORD 15023620 DIA 6MM SH 0.2362 LOC 0.7874 OAL 2.5197 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF15043
Delivery date: 3-5 days
$24.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Performance Rating General Performance
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.2362 6.00MM
Cutter Style Carbide Ball Finisher
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Ball Nose
Helix Angle 30°
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.236 x 0.236 x 0.787 x 2.520
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.5197 64.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
