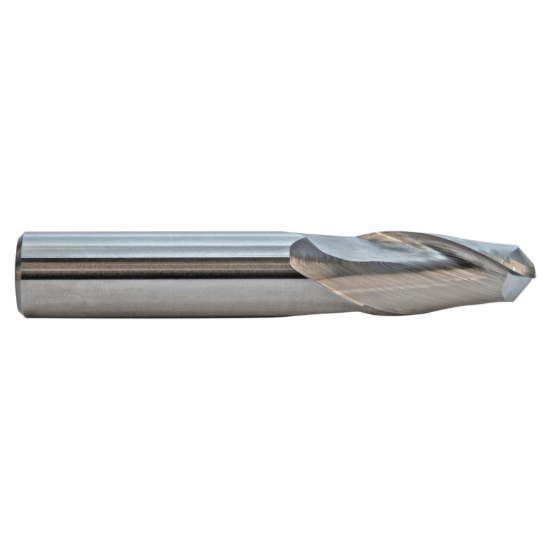

M.A. FORD 15007870 DIA 2MM SH 0.1181 LOC 0.3543 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF15013
Delivery date: 3-5 days
$15.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Overall Len 1.4961 38.00MM
Helix Angle 30°
End Of Tool Shape Ball Nose
Length Of Cut 0.3543 9.00MM
Dimension Description 0.079 x 0.118 x 0.354 x 1.496
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0787 2.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
