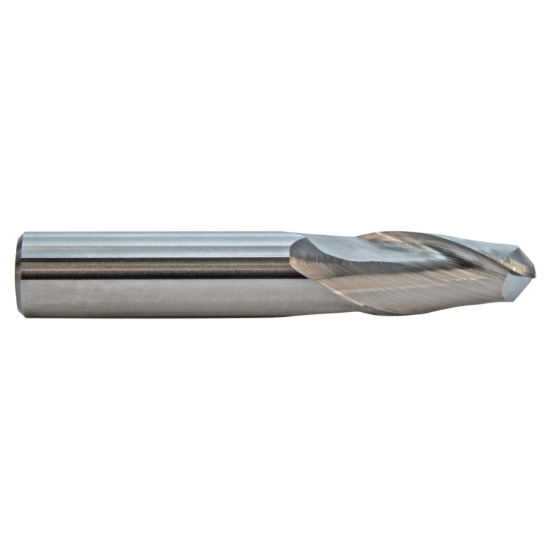

M.A. FORD 15003940GP DIA 1MM SH 0.1181 LOC 0.1181 OAL 1.4961 End Mill Standard Flute Standard Helix Carbide Gem Plus Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF17351
Delivery date: 3-5 days
$27.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Shipping State Iowa
Coating Gem Plus
Dimensional Specifications
Cutter Dia 0.0393 1.00MM
Overall Len 1.4961 38.00MM
Helix Angle 30°
Machine Side Connection Size 0.1181 3.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Length Of Cut 0.1181 3.00MM
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Length Type Standard
Dimension Description 0.039 x 0.118 x 0.118 x 1.496
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
