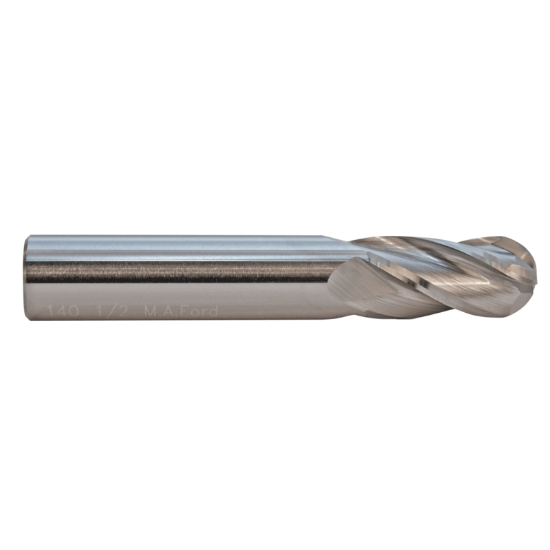

M.A. FORD 14068750 DIA 11/16 SH 0.7500 LOC 1.3750 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF14077
Delivery date: 3-5 days
$124.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Ball Milling, Copy Milling, Ball Slot Milling
Made In USA Yes
Package Size 1
Shipping State Iowa
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.688 x 0.750 x 1.375 x 4.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Overall Len 4.0000 101.60MM
Helix Angle 30°
Flutes/Inserts 4
Length Of Cut 1.3750 34.93MM
Length Type Standard
Cutter Dia 0.6875 17.46MM - 11/16
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
