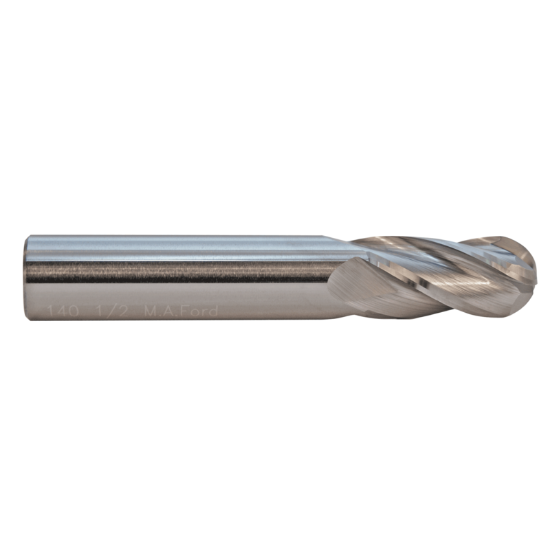

M.A. FORD 14056250 DIA 9/16 SH 0.5625 LOC 1.1250 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF14071
Delivery date: 3-5 days
$112.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Shipping State Iowa
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Carbide Ball Finisher
End Of Tool Shape Ball Nose
Cutter Dia 0.5625 14.29MM - 9/16
Single/Double End Single End
Machine Side Connection Size 0.5625 14.29MM
Helix Angle 30°
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Length Of Cut 1.1250 28.58MM
Length Type Standard
Dimension Description 0.563 x 0.563 x 1.125 x 3.500
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
