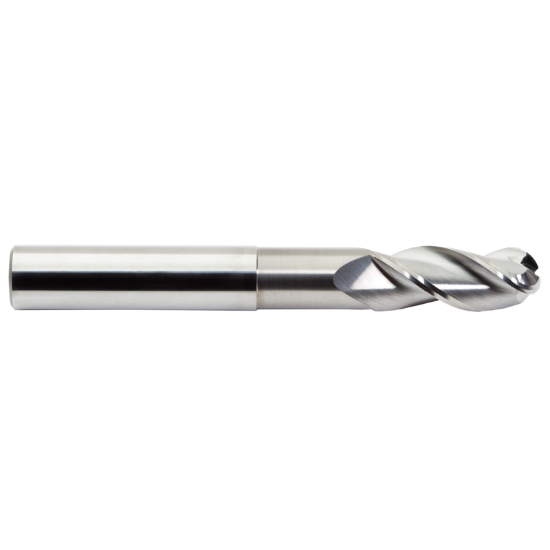

M.A. FORD 138B75001NGP DIA 3/4 SH 0.7500 LOC 1.6250 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Gem Plus Single End Ball Nose TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF17205
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling, Face Milling, Side Milling
Package Size 1
Coating Gem Plus
Performance Rating High Performance
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Dimension Description 0.750 x 0.750 x 1.625 x 6.000
Length Type Standard / With Neck
Helix Angle 36°
Flutes/Inserts 3
Cutter Dia 0.7500 19.05MM - 3/4
Neck Length 3.3750 85.73MM
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
