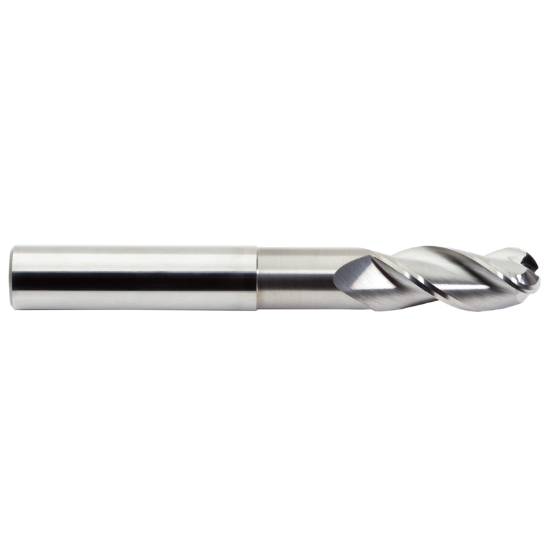

M.A. FORD 138B6299N5 DIA 16MM SH 0.6299 LOC 0.7874 OAL 5.1181 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13388
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Profile Milling, Face Milling
Made In USA Yes
Shipping State Iowa
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Neck Length 3.2283 82.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dimension Description 0.630 x 0.630 x 0.787 x 5.118
Cutter Dia 0.6299 16.00MM
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Style Carbide Ball Finisher
Overall Len 5.1181 130.00MM
Single/Double End Single End
Length Type Standard / With Neck
Helix Angle 36°
Inch/Metric Metric
Flutes/Inserts 3
Length Of Cut 0.7874 20.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
